Vacuum Manifold for Fieldbus System ZKJ Series

Summary

Vacuum Manifold for Fieldbus System ZKJ Series

Fieldbus-compatible
Requires no input/output unit. Space-saving
Reduced wiring time
Compatible protocol: PROFINET
Energy-saving ejector: Air consumption reduced by 90%
Supply valve: N.O. specification
Can hold vacuum even when the power goes out or is turned off (Supposing the supply pressure is being maintained)
Prevents the sudden dropping of workpieces (Supposing the supply pressure is being maintained)
IP65: Dust-tight/Water-jet-proof

Body Ported Type Vacuum Ejector ZH

Summary

Nozzle sizes: ø1.5, ø1.8, and ø2.0 have been added to the box type.[New]
Box type (Built-in silencer)
Compact and lightweight - 　Overall length: Max. 11% reduction (6.7 mm shorter) [Body ported type], 　Port height: Max. 25% reduction (9.1 mm shorter) [Body ported type],　Weight: Max. 74% reduction (65.1 g lighter) [Body ported type], 　Volume: Max. 39% reduction (14.1 cm3 reduction) [Box type]

ZH20DSA-03-04-04 Body Ported Type Vacuum Ejector (Price After Discount & 18% GST)

₹4,040.30

Summary

Technical Specifications:-

Type of Valve - Body Ported Type Vacuum Ejector
Nozzle size - ø2.0 mm
Vacuum pressure reached - −90 kPa
Port (SUP/VAC/EXH) size - Female threads ( Rc3/8 / Rc1/2 / Rc1/2 )
Fluid - Air
Operating pressure range - 0.1 to 0.6 MPa
Applicable tubing material - FEP, PFA, Nylon, Soft nylon, Polyurethane

Features:-

ZH13DSA-01-02-02 Body Ported Type Vacuum Ejector (Price After Discount & 18% GST)

₹1,241.87

Summary

Technical Specifications:-

Type of Valve - Body Ported Type Vacuum Ejector
Nozzle size - ø1.3 mm
Vacuum pressure reached - −89 kPa
Port ((SUP/VAC/EXH) size - Female threads (Rc1/8 / Rc1/4 / Rc1/4) Metric size
Fluid - Air
Operating pressure range - 0.1 to 0.6 MPa
Applicable tubing material - FEP, PFA, Nylon, Soft nylon, Polyurethane

Features:-

ZH07DSA-06-06-06 Body Ported Type Vacuum Ejector (Price After Discount & 18% GST)

₹1,011.48

Summary

Technical Specifications:-

Type of Valve - Body Ported Type Vacuum Ejector
Nozzle size - ø0.7 mm
Vacuum pressure reached - −89 kPa
Port (SUP/VAC) size - ø6 (Metric size) One-touch fittings
Fluid - Air
Operating pressure range - 0.1 to 0.6 MPa
Applicable tubing material - FEP, PFA, Nylon, Soft nylon, Polyurethane

Features:-

Bernoulli Type Non-contact Gripper

Summary

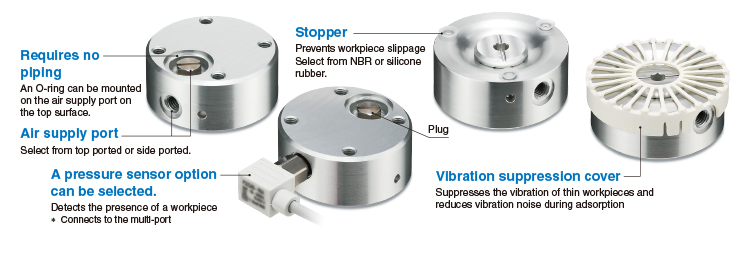

Bernoulli Type Non-contact Gripper XT661-X427

For the adsorption transfer of thin cloths, films, printed circuit boards, etc.
High lifting force compared with the existing model: 4.4 times (Supply pressure: 0.5 [MPa], For non-permeable workpieces)
Stopper/With vibration suppression cover
A pressure sensor option can be selected.

ZL112A Multistage Ejector (Price After Discount & 18% GST)

₹10,721.69

Summary

Technical Specifications:-

Type of product - Multistage Ejector without Valve
Max suction flow rate - 100L/min
Supply (P) port - ø6 (Metric)
Vacuum (V) port - ø12 (Metric)
Pressure gauge unit* - kPa
Exhaust method - Silencer exhaust
Nozzle size [mm] - 1.2
Max. vacuum pressure [kPa]- −84
Supply pressure range [MPa] - 0.2 to 0.5

Multistage Ejector

Summary

Multistage Ejector ZL1/ZL3/ZL6 Series

Compact3 types available: 100, 300, and 600 L/min (ANR)
Air consumption 90% reduction (For the ZL3, ZL6)
Weight Max. 60% reduction [ZL112 (Existing model): 450 g / ZL1: 180 g]
3-stage diffuser construction (For the ZL1),Suction flow rate increased by 250%
3 types of vacuum pressure sensors
No tools are required! Maintenance labor can be reduced.

Vacuum Unit

Summary

Vacuum Unit Ejector System/Vacuum Pump System ZK2□A Series

Air supply is cut-off when vacuum is reached. Energy saving ejector: Air consumption 93% reduction
More efficient ejector: Suction flow 50% increase (Compared to other SMC 1-stage ejectors)
Energy saving efficiency: 93% reduction
Improved low noise and suction flow by adoption of a high-noise reduction silencer

ZH13BSA-08-10 Box Type (Built-in Silencer) Vacuum Ejector (Price After Discount & 18% GST)

₹1,601.51

Summary

Technical Specifications:-

Type of Valve - Vacuum Ejector Box Type
Nozzle size - ø1.3 mm
Vacuum pressure reached - −89 kPa
Port (SUP/VAC) size (One-touch fittings) - ø8, ø10
Fluid - Air
Operating pressure range - 0.1 to 0.6 MPa
Applicable tubing material - FEP, PFA, Nylon, Soft nylon, Polyurethane

Features:-
