Electric Actuators/Cylinders
Electric Actuators
Rod Type, Slider Type, Slider Table, Rotary Table, Gripper
Precision & Power: SMC Electric Actuators, Your Flexible Linear Motion Solution
SMC electric actuators deliver precise speed, force, and positioning for industrial automation. As a leading electric actuator manufacturer, SMC provides advanced electric cylinders, linear actuators, and electric rotary actuators tailored to your application needs. From compact electric actuator 12V solutions to high‑performance servo‑driven systems, SMC stands out as a reliable linear actuator manufacturer. These actuators require no air supply, simplifying installation while improving energy efficiency and control. Achieve smooth, accurate linear and rotary motion with SMC’s innovative electric actuator technology.
Get In Touch
Energy Efficient
Precision Control
Low Maintenance
Global Support
Types of SMC Electric Actuators
Achieve unmatched precision with SMC electric actuators, designed by a trusted electric actuator manufacturer. Our high‑performance linear actuators, electric cylinders, electric rotary actuators, and electric actuator 12V solutions deliver accurate speed, force, and positioning for advanced industrial automation applications.

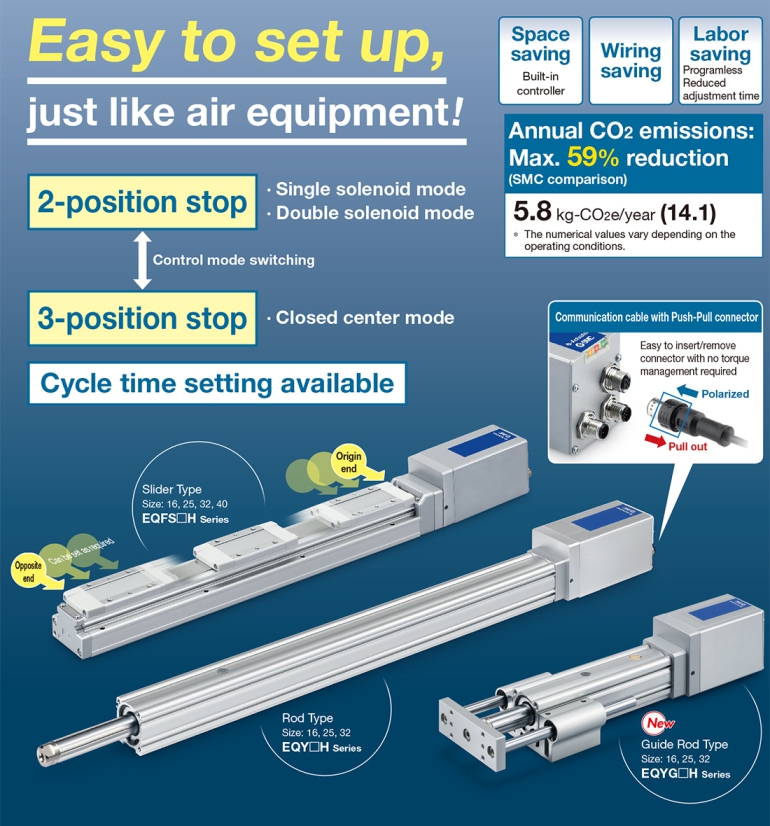

e-Actuator Easy to Operate Integrated Controller EQ Series
Slider Type/Rod Type/Guide Rod Type
- Battery-less absolute (Step motor 24 VDC)
- Communication cable with Push-Pull connector
- Annual CO2 emissions: Max. 59% reduction (SMC comparison)
- Two and three position stop with no programming required
- Cycle time can be set in all control modes

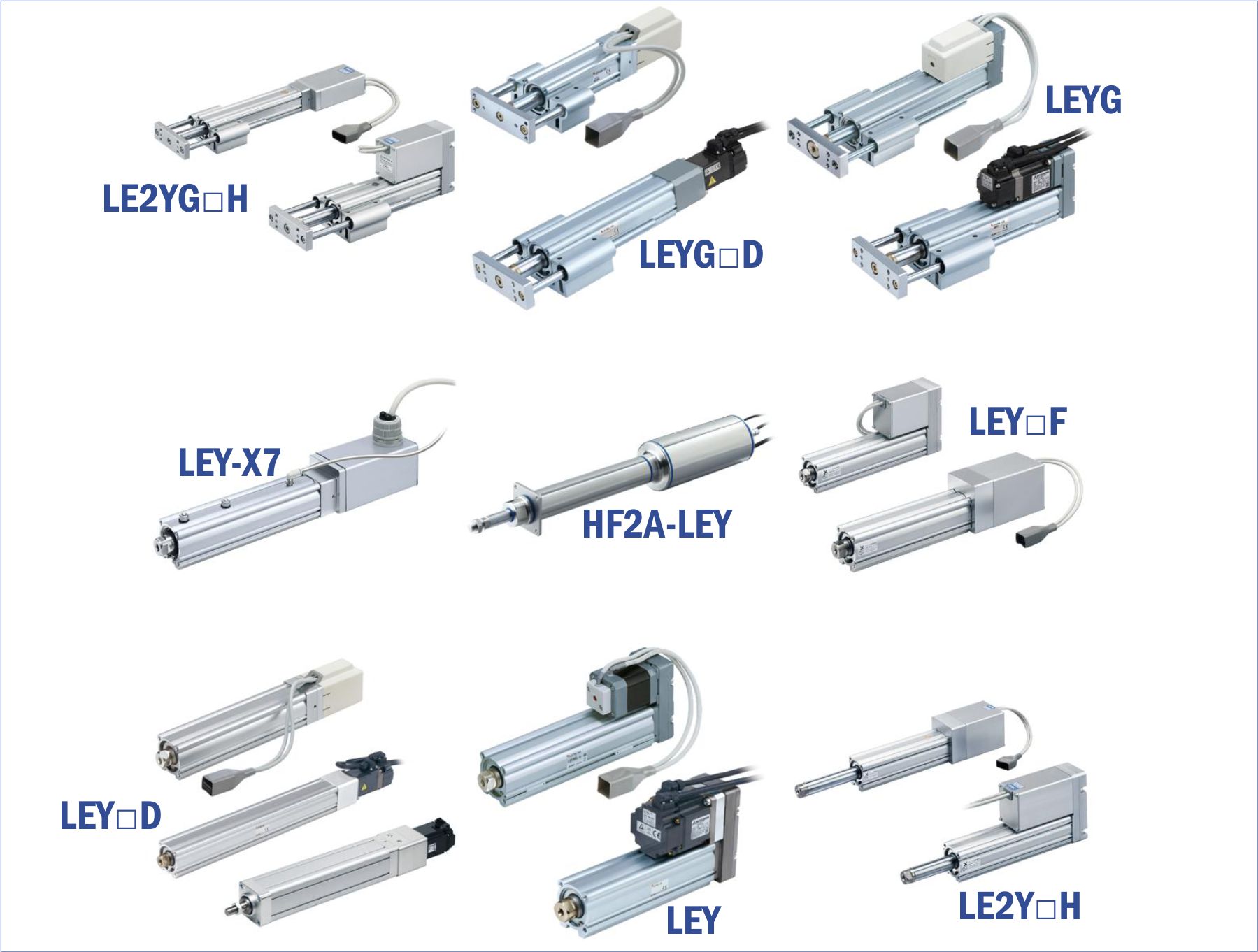

Rod Type/Guide Rod Type Electric Actuator
Battery-less Absolute Encoder Type, Motor Top/Parallel Type, In-line Motor Type, Dust-tight/Water-jet-proof, Motor Top Mounting Type, High Performance Type
- LE2Y□H: Compatible with manifold controller, Annual CO2 emissions reduced by up to 38% through motor control optimization
- LEY Series Step Motor (Servo/24 VDC), Servo Motor (24 VDC)< Max Stroke 500mm. LEY Series AC Servo Motor, High output motor (100/200/400 W/750W)
- LEYG Series Step Motor (Servo/24 VDC), Servo Motor (24 VDC), Compact integration of guide rodsPositioning repeatability: ±0.02 mm or less. LEYG Series AC Servo Motor, High output motor (100/200 W/400W/750W)

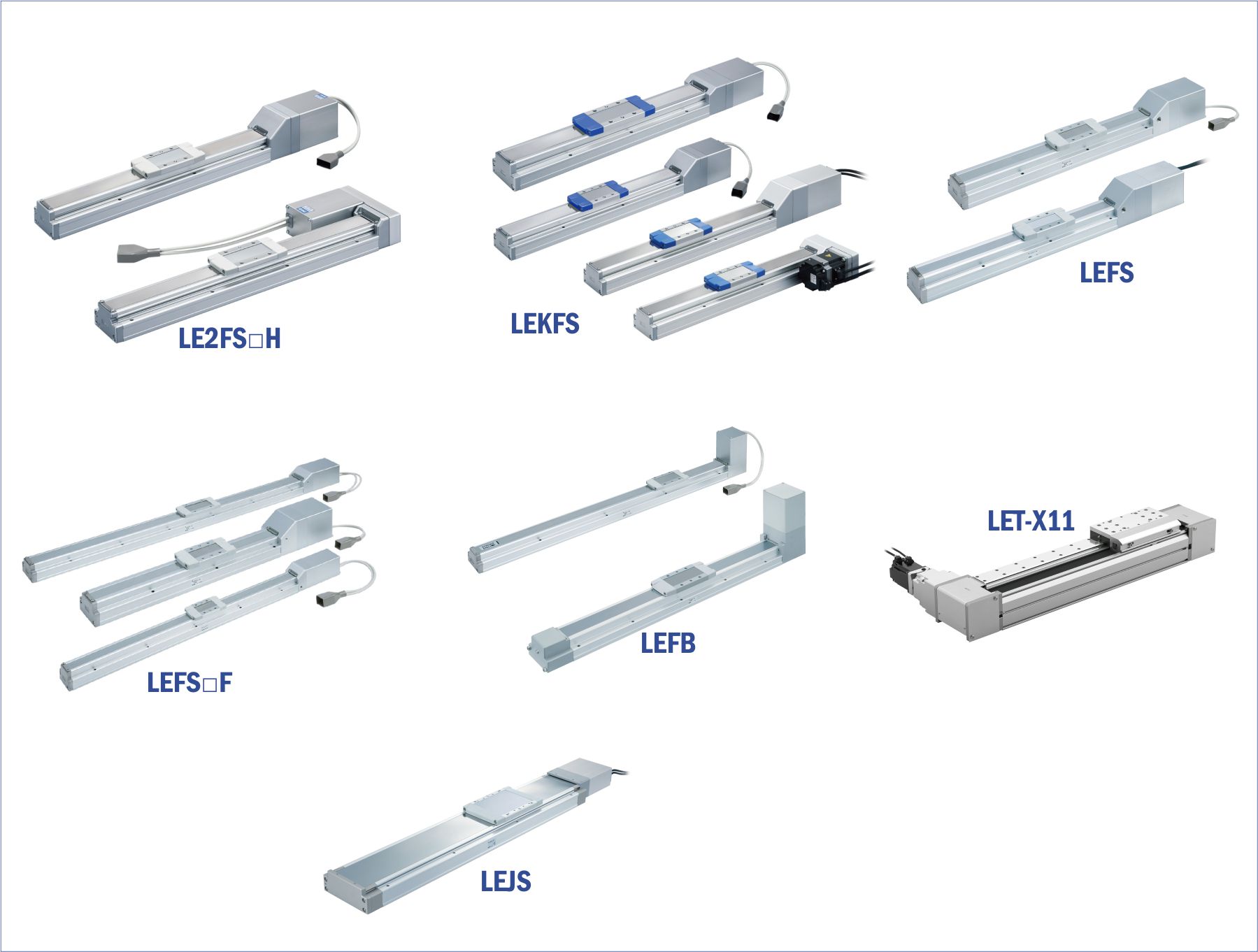

Slider Type Electric Actuator
Battery-less Absolute Encoder Type, Slider Type High Rigidity Guide, Slider Type, Ball Screw Drive, Slider Type, Belt Drive, Large Slider Type, Belt Drive, High Rigidity Slider Type, Slider Type Ball Screw Drive, Low Profile Slider Type, Guide Rod Slider
- Restart from the last stop position is possible after recovery of the power supply
- Step Motor (Servo/24 VDC), Servo Motor (24 VDC), AC Servo Motor
- Max Stroke upto 3000mm, Max work load upto 400kg (Horizontal, Max Speep upto 4000 mm/sec

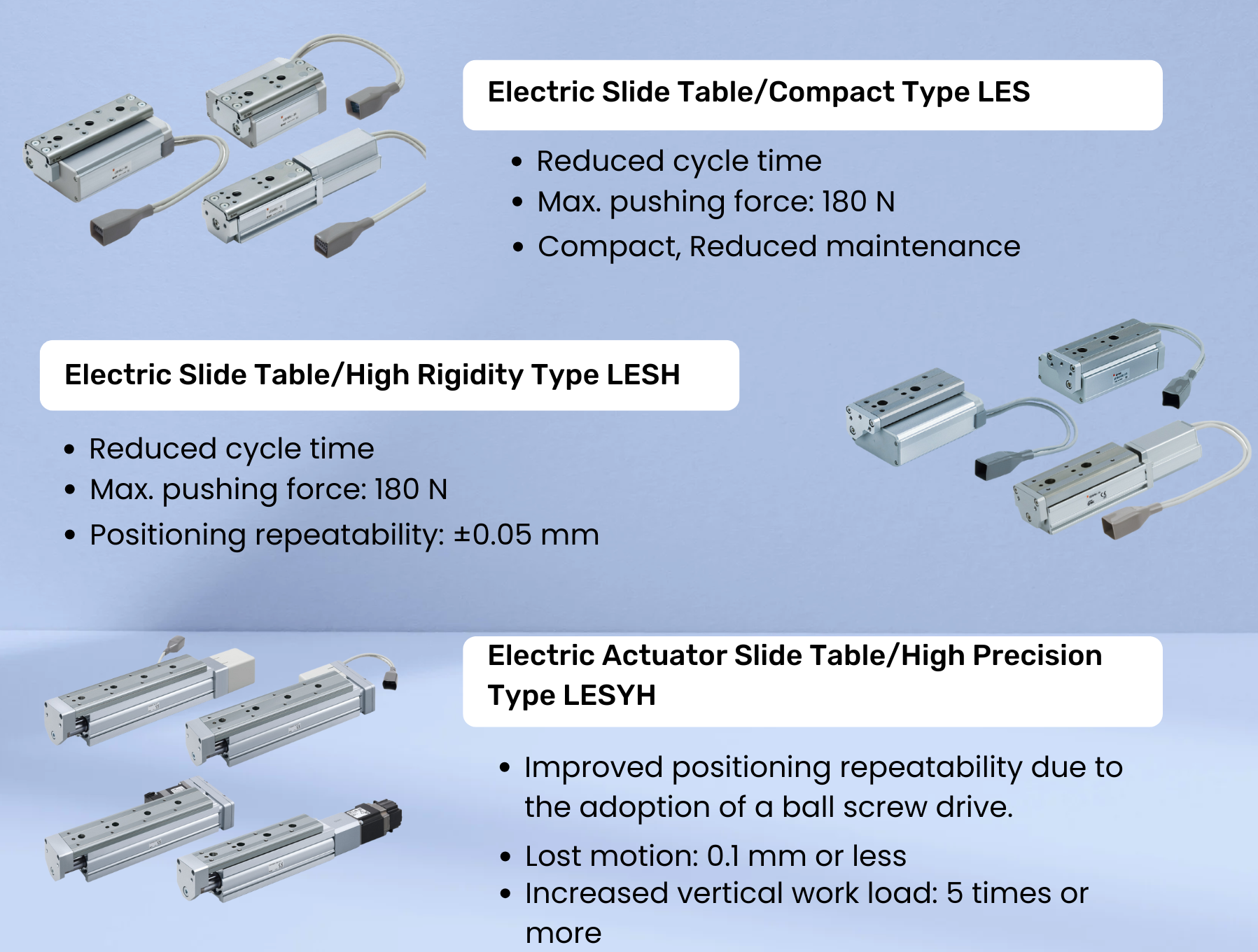

Electric Slide Table
Battery-less Absolute, Compact Type, Lightweight, High Rigidity Type, High Precision Type
- Work load (kg)Horizontal: 12Kg, Work load (kg)Vertical: 20Kg, Max Speed: 400mm/sec
- Step Motor (Servo/24 VDC), Servo Motor (24 VDC), AC Servo Motor
- Motorless type, Reduces cycle time, Positioning repeatability: ±0.05 mm

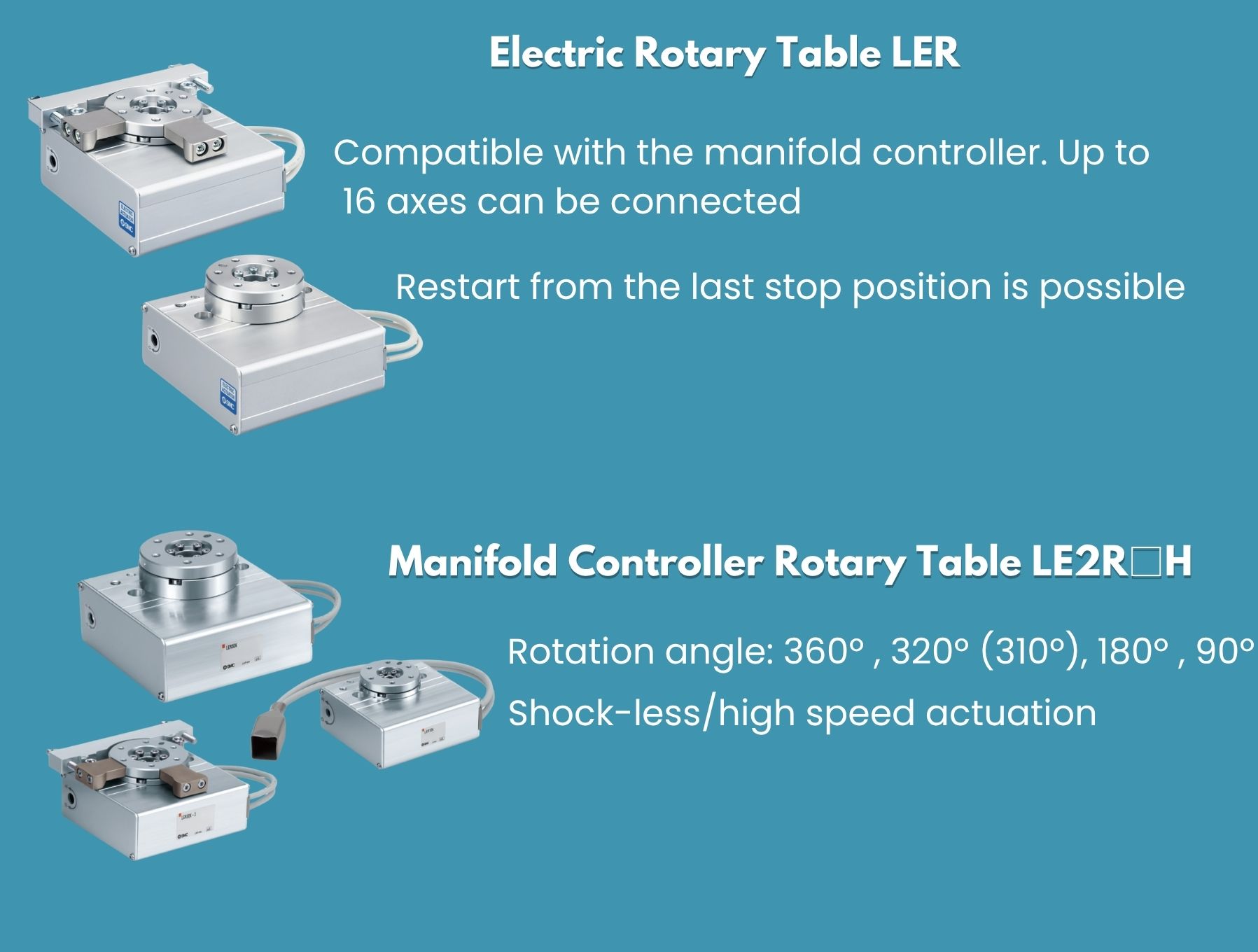

Electric Rotary Table
Battery-less Absolute Encoder Type, Compatible with Manifold Controller, Space saving, Energy saving, High precision type
- Shock-less/high speed actuation, Max. speed: 420°/sec (7.33 rad/sec)
- It is possible to set the speed, acceleration/deceleration, and position. Max. 64 points
- Annual CO2 emissions reduced by up to 38% through motor control optimization
How to Choose the Right Electric Actuator ?
With over 60 years of expertise, SMC offers innovative, reliable, and efficient electric actuators tailored to your needs.
When selecting electric actuators, several factors need to be considered. The decision will depend on both the process conditions and the application type:e
- Workload
- Stroke
- Speed
- Electric actuator orientation
- Actuation type<
- Intermediate stopping points
- Installation space
- Control method
- Encoder type
Additionally, customer requirements play a crucial role, such as:
- Type of electrical connection
- Environment (e.g., dust type, water-jet-proof, secondary battery)
- Installation extension plans
- Accessories
